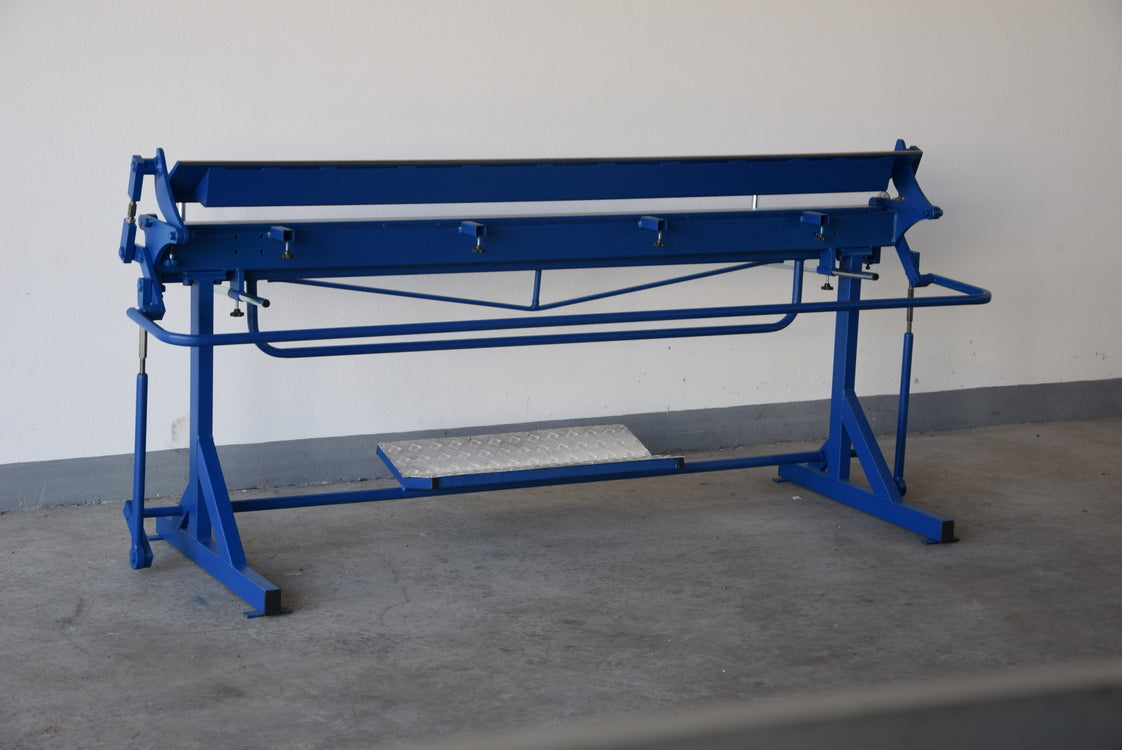

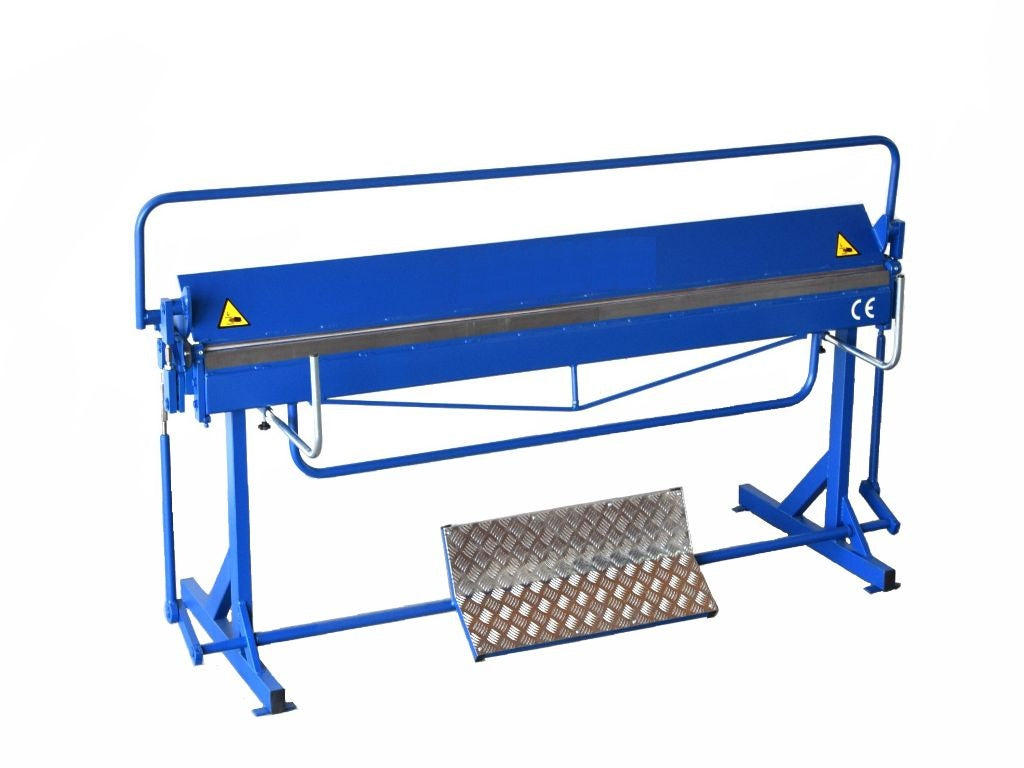

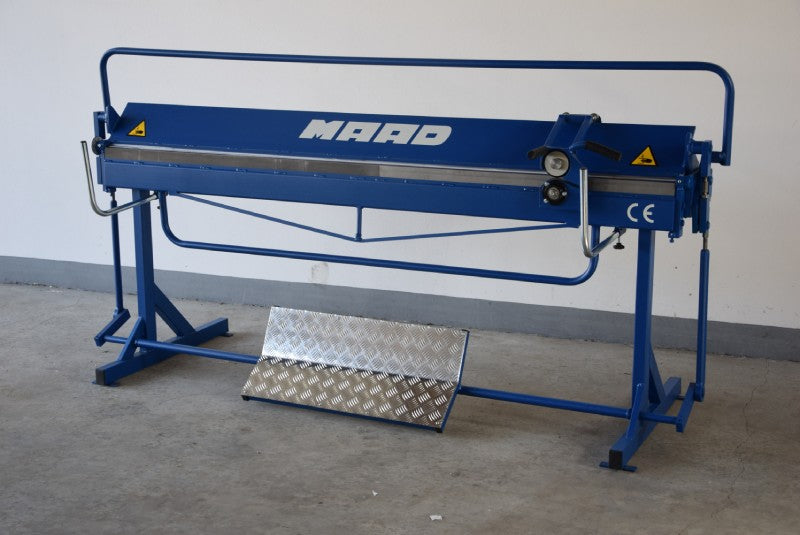

The 2.0-meter Lightweight Sheet Metal Folding Machine RLHF-2000.7 boasts the following technical specifications: it supports a maximum bending length of 2100 mm (83"), and handles bending capacities of up to 0.7 mm for steel sheets, and 1.0 mm for aluminum, copper, and zinc sheets. The maximum achievable bending angle is 155°, with a bending beam thickness of 15 mm and a clamping beam lift height reaching up to 80 mm. Its overall dimensions measure 2320 x 800 x 1100 mm, and it weighs approximately 149kg, depending on the configuration.
Features:
removable legs simplify transport and loading

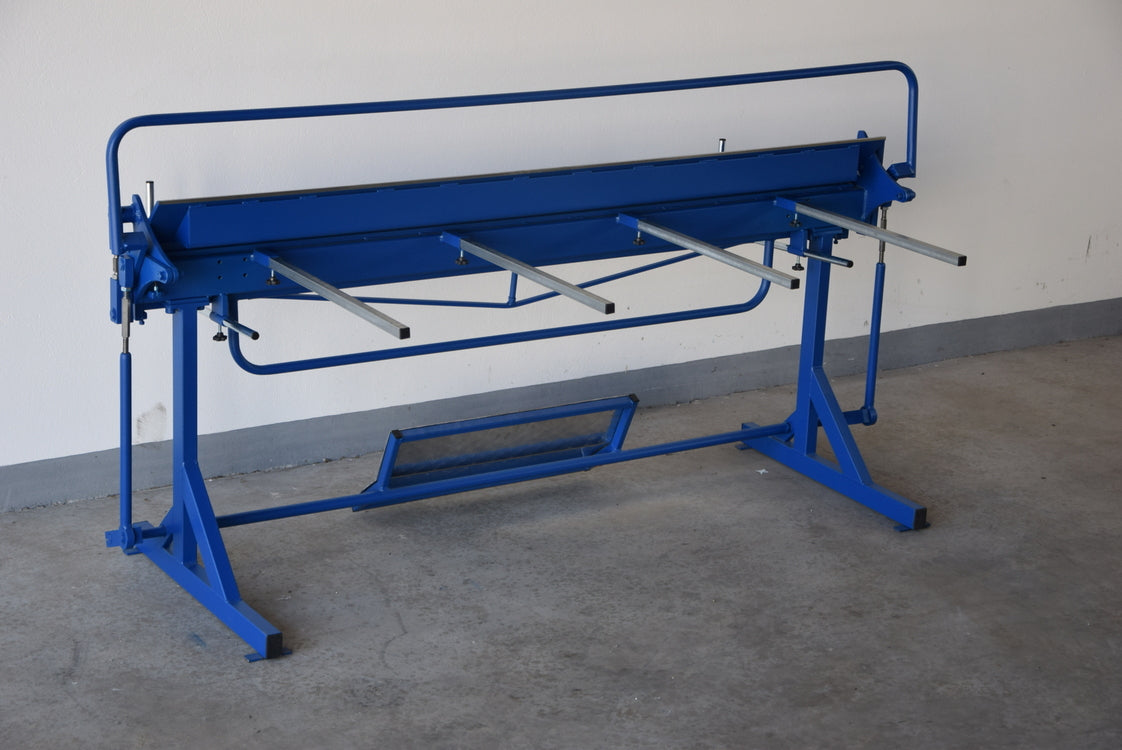

rear support table provides stable backing for sheet metal
front measuring bumpers enable quicker sheet metal cutting

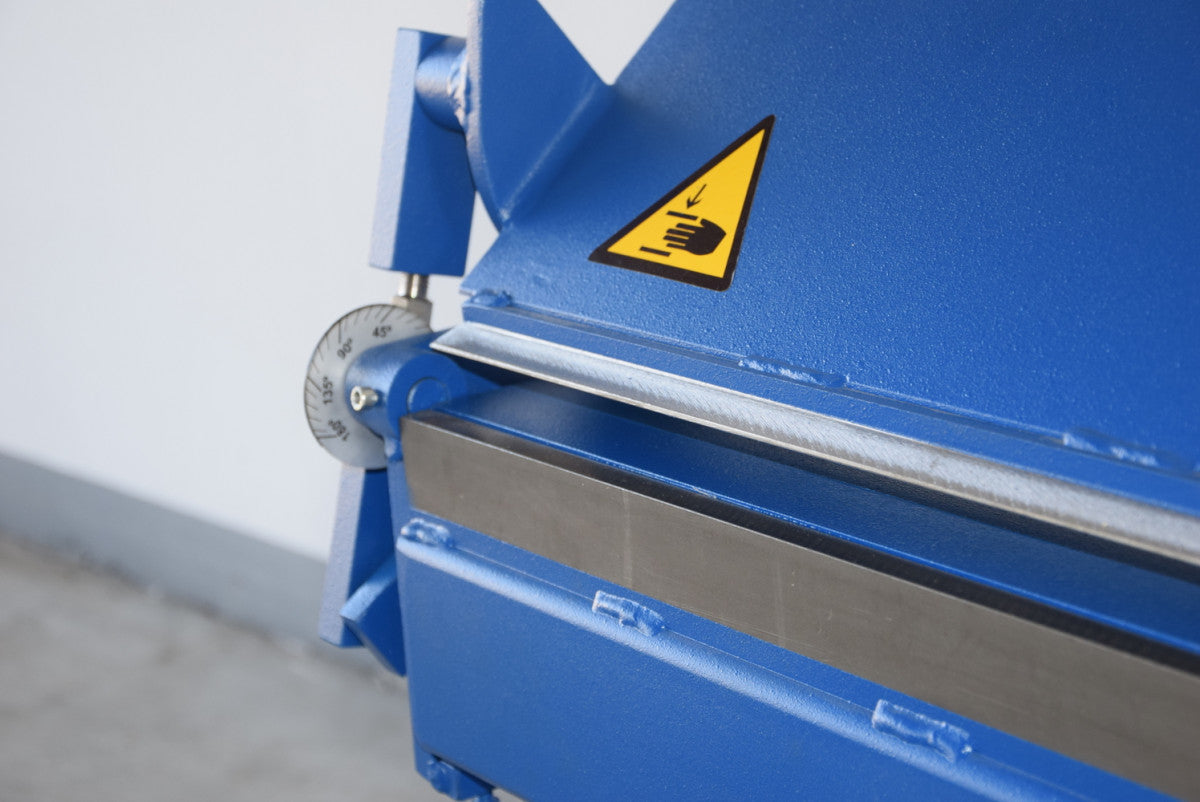

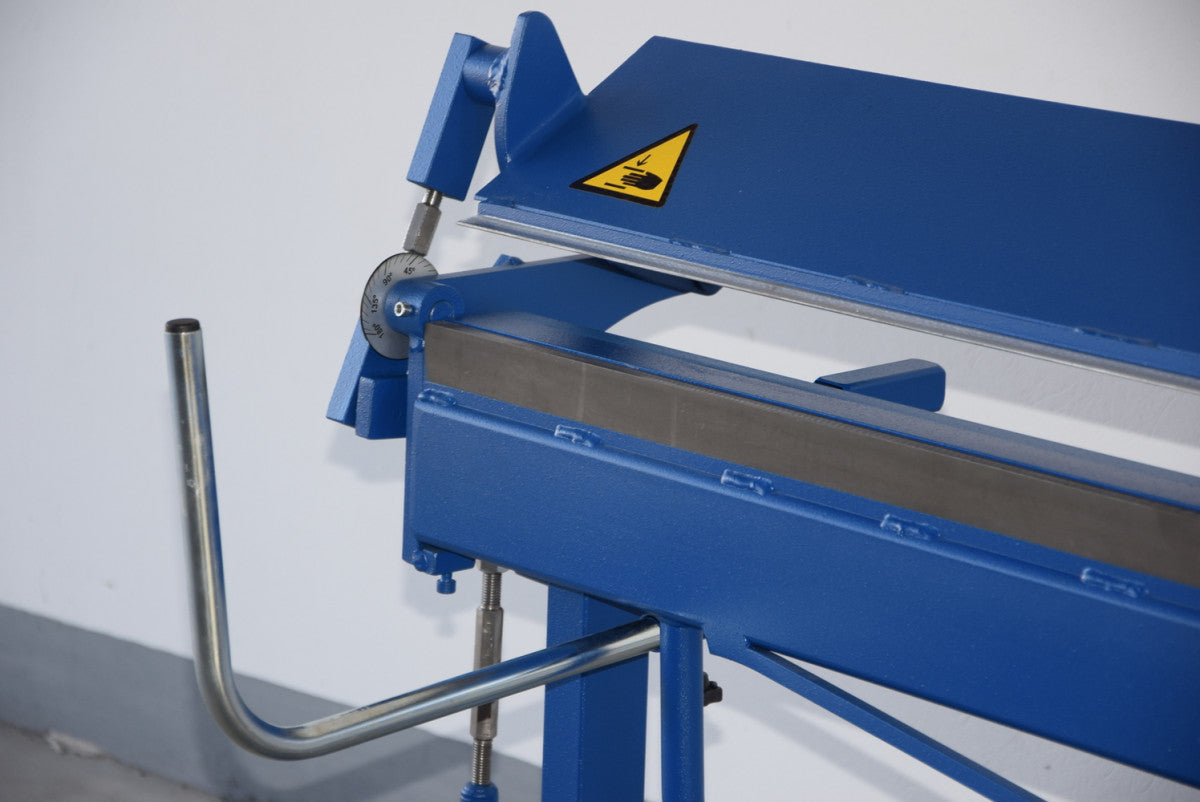

angle gauge ensures accurate bending angles
gas cylinder assists in lifting the bending beam
single-handed control for the clamping beam operation
Enhanced sheet metal handling efficiency enabled by the foot clamp
