Sheet metal bending machine RZG-301.1

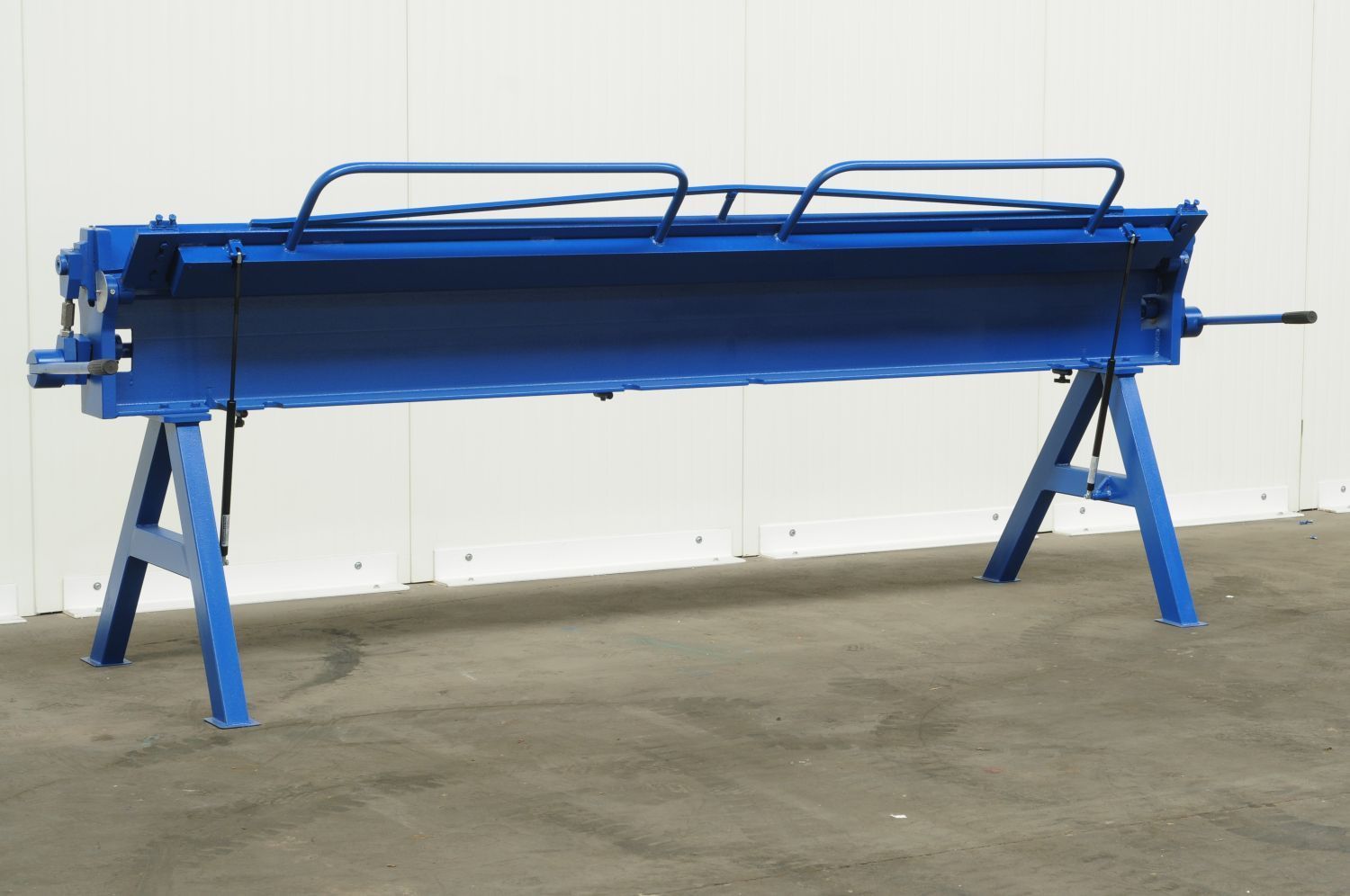

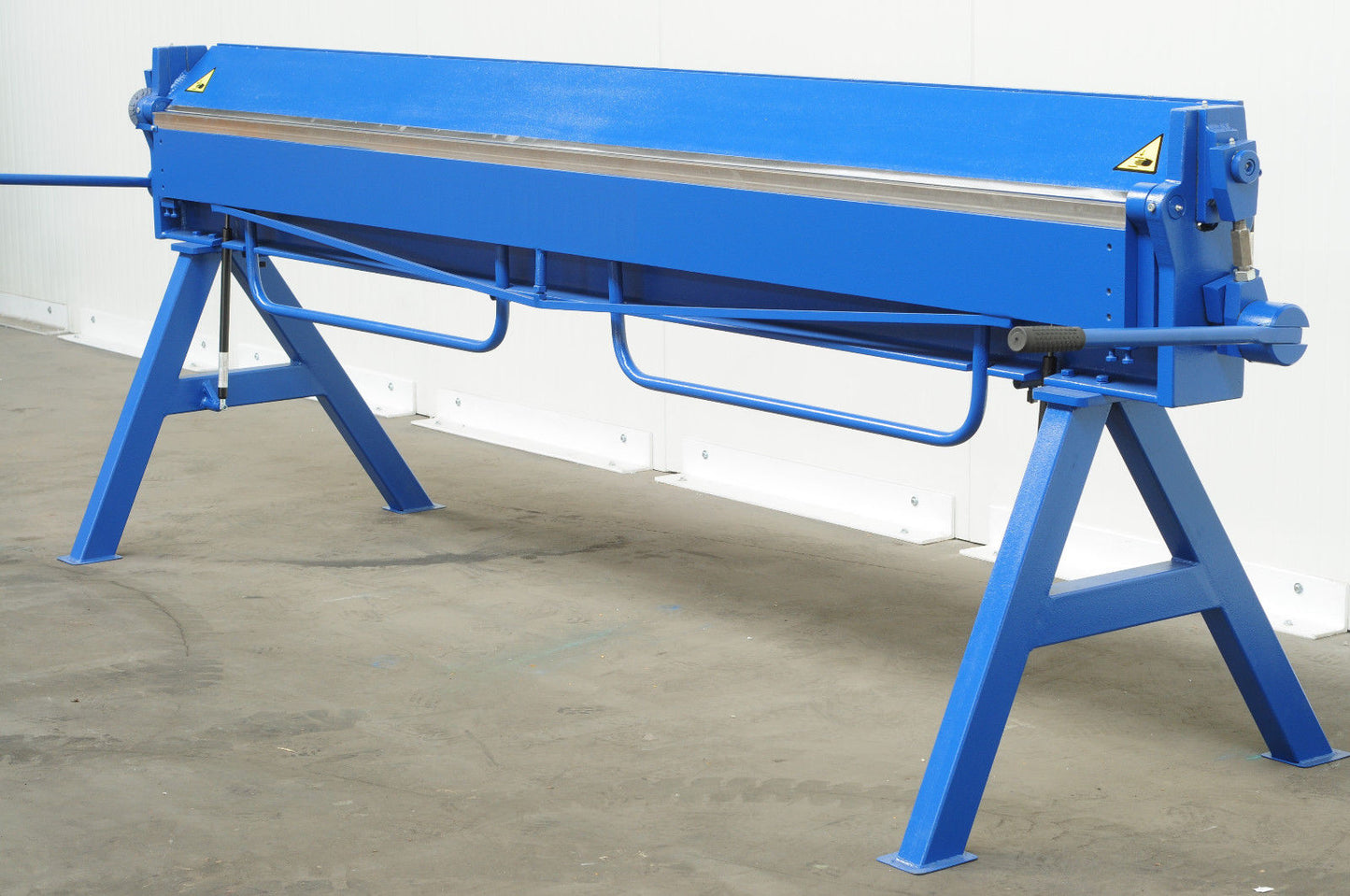

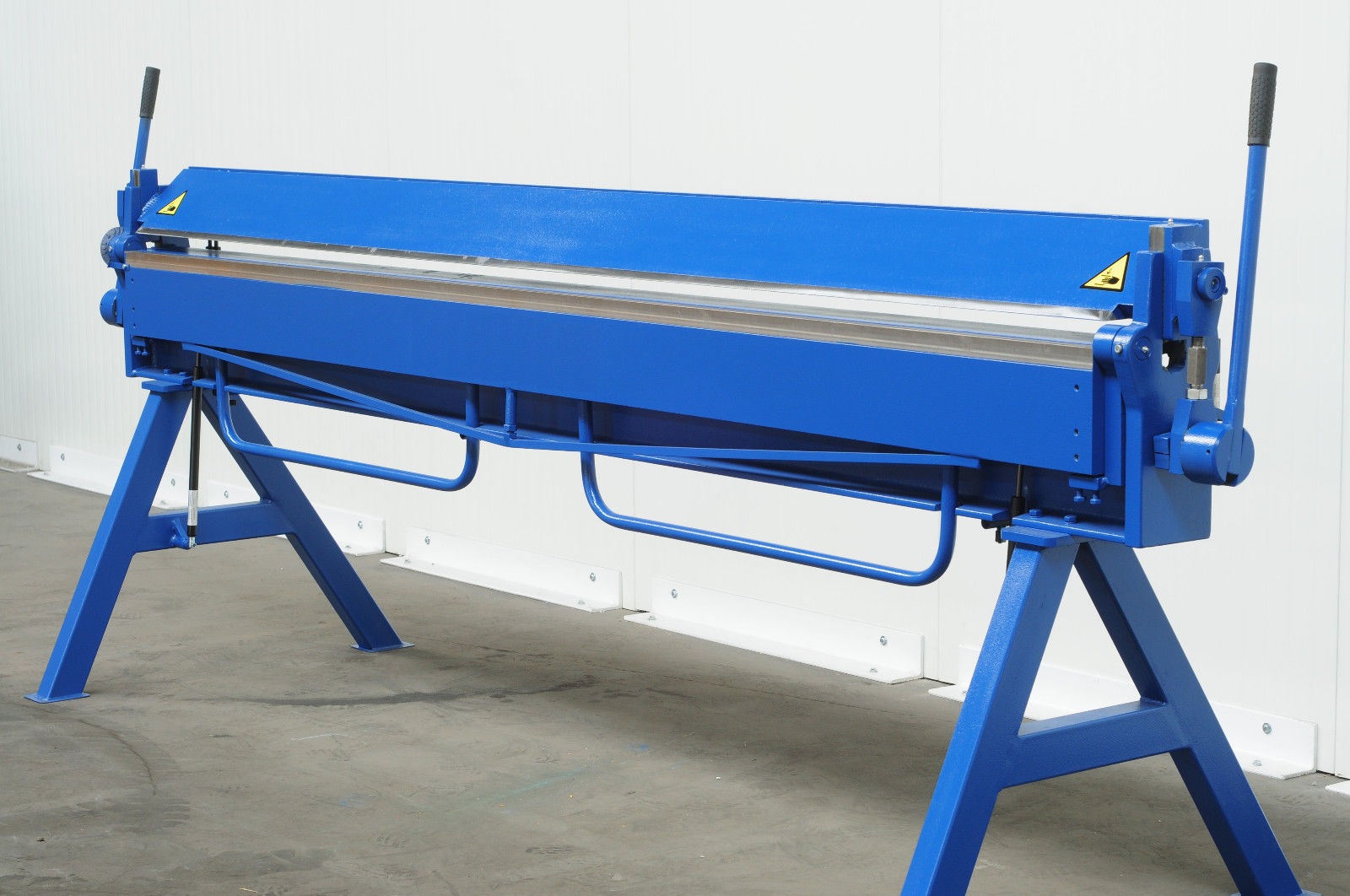

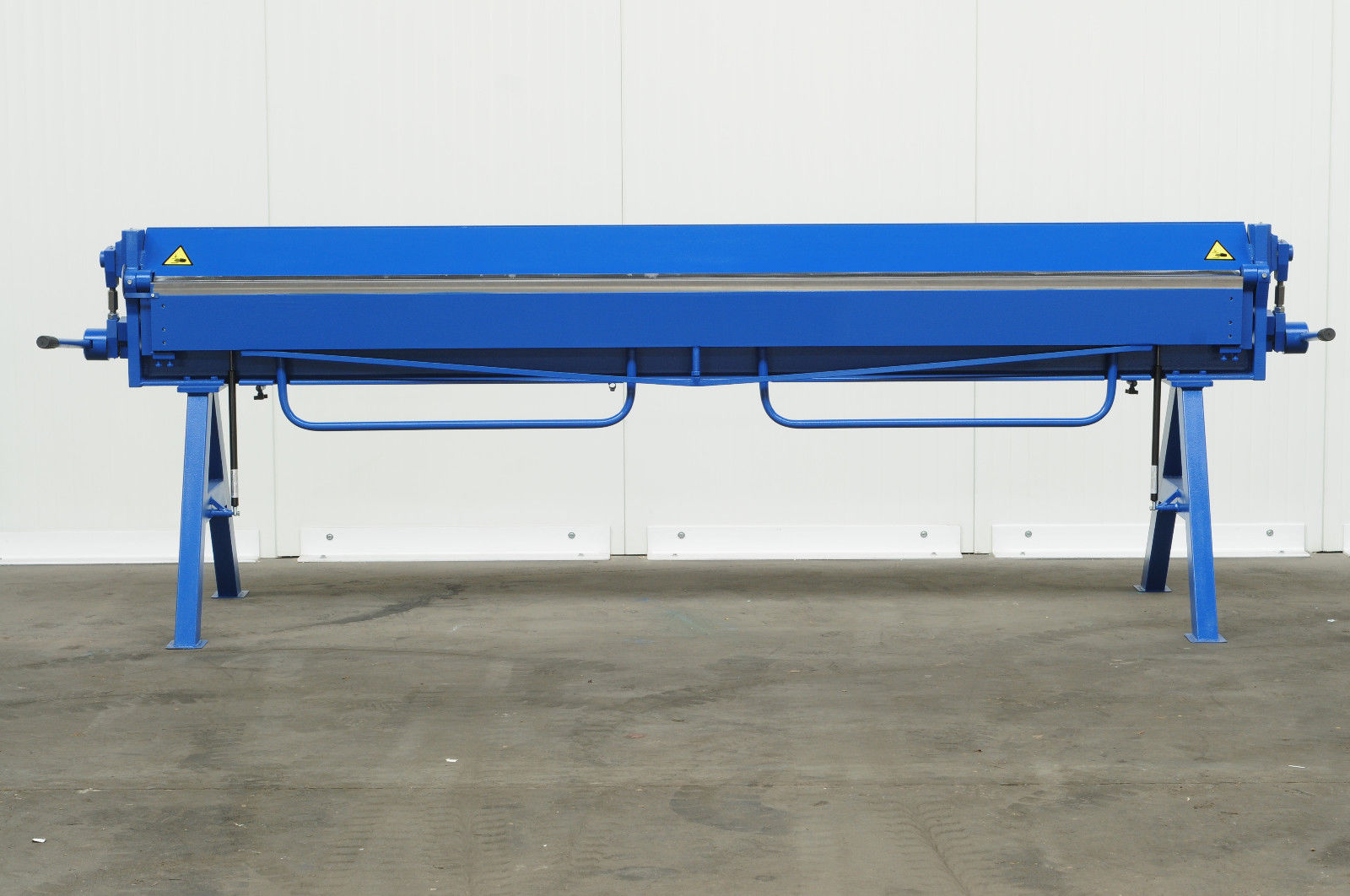

Manual Sheet Metal Bending Machine RZG-301.0 – Precision, Durability, Versatility

Are you looking for a solid, versatile, and reliable machine for processing sheet metal up to 3 meters long? The RZG-301.0 bending machine is the perfect solution for professionals – roofers, sheet metal workshops, HVAC companies, and anyone working with thin metal sheets.

Key Features:

• Working width up to 3100 mm – enables bending large sheet formats.

• Bending capacity up to 1.0 mm thick (for Rm < 400 MPa) – ideal for steel, aluminum, and galvanized sheets.

• Robust construction – reinforced 35 mm side mechanisms and heavy-duty bending beams ensure stability and long service life.

• Precision and ease of use – three gas springs assist the clamping beam and two gas springs support the bending beam for smooth, effortless operation.

• Clamping beam lift height up to 100 mm – makes it easier to form deep components such as ventilation ducts.

• Large beam clearance (85–100 mm) – allows for more complex bending operations and better work comfort.

Standard Equipment:

• Detachable legs – make transport and loading easier.
• Rear sheet metal support frame.
• Sheet metal cutting guides.
• Angle indicator.
• Brass bushings with direct lubrication – extend the life of rotating components.
• Compatibility with rotary shears increases functionality.

Technical Specifications:

• Working width: 3100 mm
• Max sheet thickness (Steel): 1.0 mm (for Rm < 400 MPa)
• Bending beam width: 30 mm
• Max bending angle: 135° (optional version up to 155°)
• Beam clearance: 85–100 mm
• Machine weight: 700 kg

Overall Dimensions:

• Height: 1150 mm
• Width: 3580 mm
• Depth: 1000 mm

Why Choose the RZG-301.0 ?

This is a universal and reliable bending machine that combines solid construction with the functionality required in everyday sheet metal work. Thanks to its well-thought-out design and modern technical solutions, it is ready for heavy-duty, professional use.
