Sheet metal bending machine RZG-400.8

Manual Sheet Metal Bending Machine RZG-400.8 – Precision Bending up to 4 Meters!

The RZG-400.8 bending machine is a reliable, heavy-duty device designed for professionals working with flat sheet metal up to 4080 mm in length. It's an excellent choice for sheet metal workshops, roofing companies, and HVAC contractors.

Key Advantages:

• Impressive working width of 4080 mm – perfect for processing long sheet metal panels.

• Bending capacity up to 0.8 mm thick (for Rm < 400 MPa) – ideal for thin steel, galvanized, or aluminum sheets.

• Reinforced construction – 35 mm thick side mechanisms and enlarged beam cross-sections provide high durability and stability.

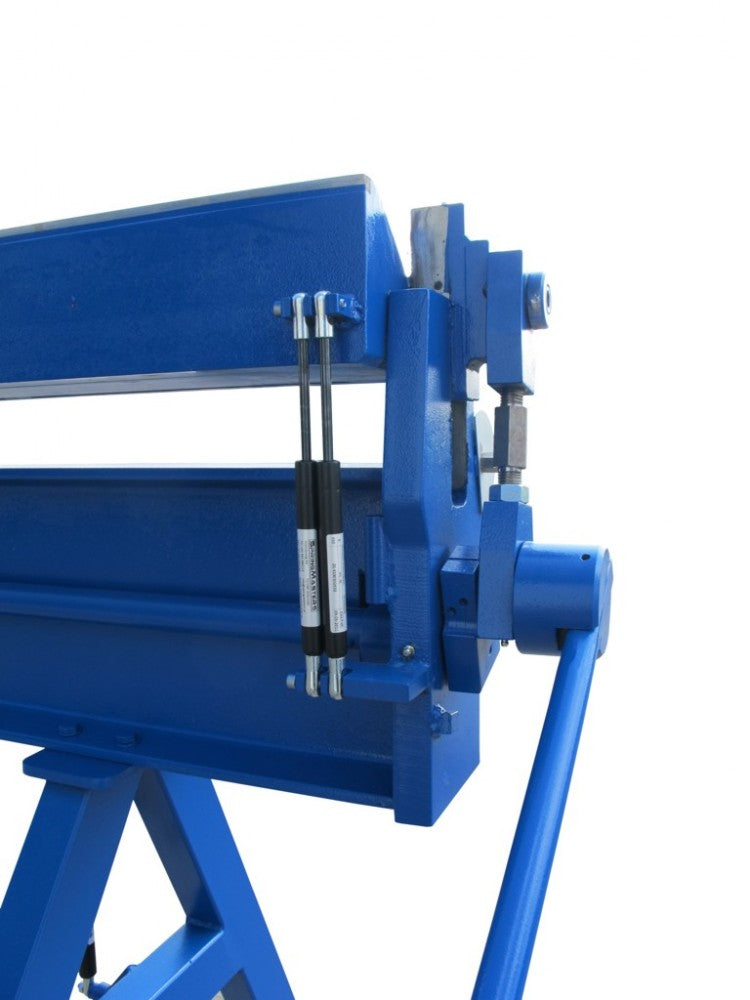

• Smooth operation – gas springs assist both the clamping and bending beams, making work lighter and more precise.

• High clamping beam lift (up to 80 mm) – allows for easy shaping of deeper components such as ventilation ducts.

• Bending angle stop – enables quick and precise angle adjustment without constant measuring.

• Brass bushings with direct lubrication – extend the machine’s service life and reduce maintenance needs.

Standard Equipment:

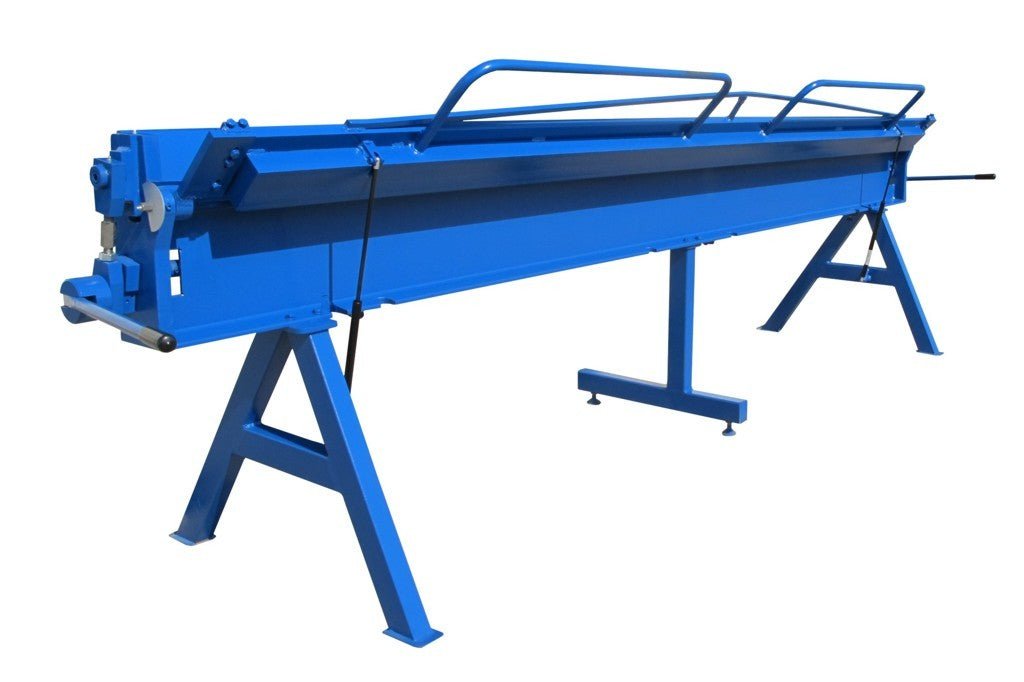

• Galvanized 5-piece rear sheet support frame.
• Sheet cutting guides.
• Angle gauge.
• Bending angle limiter.
• Removable legs – simplify transport and loading.
• Gas springs supporting both bending and clamping beams.
• Compatible with rotary shears for extended functionality.

Technical Specifications:

• Working width: 4080 mm
• Max sheet thickness (Steel): 0.8 mm (for Rm < 400 MPa)
• Bending beam width: 30 mm
• Max bending angle: 140°
• Beam clearance: 80 mm
• Machine weight: 900 kg

Overall Dimensions:

• Height: 1150 mm
• Width: 4580 mm
• Depth: 1000 mm

RZG-400.8 – Built for Demanding Jobs!

Strong, precise, and versatile – this bending machine is perfect for fabricating ventilation ducts, roofing elements, and all applications where long, high-quality bends are essential. A must-have in any professional metalworking shop.

Want more details? Need a quote or availability info?
Contact us – we’ll be happy to assist and prepare a personalized offer for your business needs!
